Last Date Modified: <04/23/18>

This tutorial's motivation is to show readers how to use a Microsoft Kinect V2 to get image and depth data into the HTC Vive's HMD. Readers of this tutorial are assumed to have the following background and interests:
*Knowledge and experience with OpenVR API
*Knowledge and experience with ROS 1 & 2
*Knowledge and experience with CPP
The rest of this tutorial is presented as follows:

• Parts Lists and Sources
• Installing OpenCV and Kinect V2 package
• OpenCV Code
• Importing Video Feed into HMD

These are the parts and their sources needed to complete this tutorial.

First, you will need to install the following packages on the computer with Ubuntu 16.04 installed.

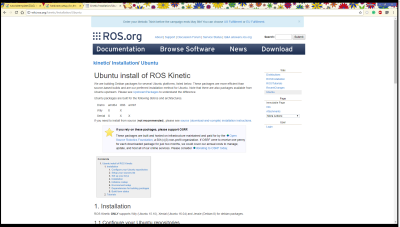

• Install ROS Kinetic

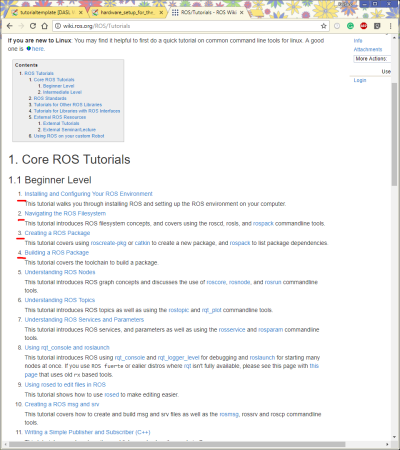

Make sure to do ROS tutorials 1~4

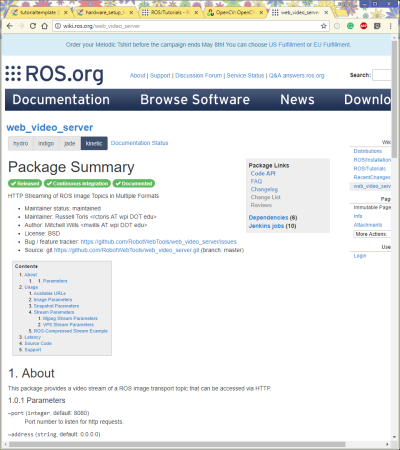

• Make sure to install the web video server package

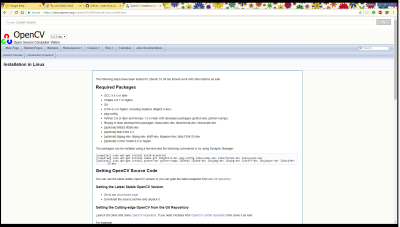

• Install OpenCV

• Install Kinect V2 package

Note: Though the installation uses Ubuntu 14.04 the 16.04 version will work just fine

This tutorial will not go over the OpenCV code and how it works in detail. This tutorial will just go over how to integrate the different aspects. Please refer to the OpenCV tutorials for more information.
1. Go to your catkin workspace (catkin_ws) and create a new package to house the OpenCV code.
2. In the src directory make a main.cpp file and add the following code to it:

//! [headers]
#include <iostream>
#include <stdio.h>
#include <iomanip>
#include <time.h>
#include <signal.h>
#include <opencv2/opencv.hpp>
#include <opencv2/imgproc/imgproc.hpp>
#include <opencv2/highgui/highgui.hpp>

#include <libfreenect2/libfreenect2.hpp>
#include <libfreenect2/frame_listener_impl.h>
#include <libfreenect2/registration.h>
#include <libfreenect2/packet_pipeline.h>
#include <libfreenect2/logger.h>

#include <ros/ros.h>
#include <image_transport/image_transport.h>
#include <cv_bridge/cv_bridge.h>
#include <sensor_msgs/image_encodings.h>
#include <geometry_msgs/TwistStamped.h>

//! [headers]


bool protonect_shutdown = false; // Whether the running application should shut down.

void sigint_handler(int s)
{
  protonect_shutdown = true;
}

void HSVOnly(int, int, int, int, int, int);
void Location();

cv::Mat imgCircles;
cv::Mat imgThresholded;
cv::Mat rgbd_flip;
cv::Mat test;
cv::Mat rgbmat_flip;

int iLowH = 22;
int iHighH = 34;
int iLowS = 38;
int iHighS = 244;
int iLowV = 160;
int iHighV = 255;
int posX;
int posY;
int posY_test;
int cenX;
int cenY;
float hand_x;
float hand_y;
float hand_z;
float dd;
int something = 0;

using namespace cv;
using namespace std;

void hand_fk(const geometry_msgs::TwistStamped::ConstPtr& ts)
{

	hand_x = 1000*ts->twist.linear.x;
	hand_y = 1000*ts->twist.linear.y;
	hand_z = 1000*ts->twist.linear.z;


}


int main(int argc, char** argv)
{

    ros::init(argc, argv, "image_converter");
    ros::NodeHandle nh;
    image_transport::ImageTransport it(nh);
    image_transport::Publisher pub = it.advertise("test/test", 1);
    image_transport::Publisher rgb_pub = it.advertise("test/rgb", 1);
    ros::Subscriber sub = nh.subscribe("/fk", 10, hand_fk);


    std::cout << "Streaming from Kinect One sensor!" << std::endl;

    //! [context]
    libfreenect2::Freenect2 freenect2;
    libfreenect2::Freenect2Device *dev = 0;
    libfreenect2::PacketPipeline *pipeline = 0;
    //! [context]

    //! [discovery]
    if(freenect2.enumerateDevices() == 0)
    {
        std::cout << "no device connected!" << std::endl;
        return -1;
    }

    string serial = freenect2.getDefaultDeviceSerialNumber();

    std::cout << "SERIAL: " << serial << std::endl;

    if(pipeline)
    {
        //! [open]
        dev = freenect2.openDevice(serial, pipeline);
        //! [open]
    } else {
        dev = freenect2.openDevice(serial);
    }

    if(dev == 0)
    {
        std::cout << "failure opening device!" << std::endl;
        return -1;
    }

    signal(SIGINT, sigint_handler);
    protonect_shutdown = false;

    //! [listeners]
    libfreenect2::SyncMultiFrameListener listener(libfreenect2::Frame::Color |
                                                  libfreenect2::Frame::Depth |
                                                  libfreenect2::Frame::Ir);
    libfreenect2::FrameMap frames;

    dev->setColorFrameListener(&listener);
    dev->setIrAndDepthFrameListener(&listener);
    //! [listeners]

    //! [start]
    dev->start();

    std::cout << "device serial: " << dev->getSerialNumber() << std::endl;
    std::cout << "device firmware: " << dev->getFirmwareVersion() << std::endl;
    //! [start]

    //! [registration setup]
    libfreenect2::Registration* registration = new libfreenect2::Registration(dev->getIrCameraParams(), dev->getColorCameraParams());
    libfreenect2::Frame undistorted(512, 424, 4), registered(512, 424, 4), depth2rgb(1920, 1080 + 2, 4);
    //! [registration setup]

    Mat rgbmat, depthmat, depthmatUndistorted, irmat, rgbd, rgbd2;


\
    //! [loop start]
    while(!protonect_shutdown)
    {
	ros::spinOnce();

        listener.waitForNewFrame(frames);
        libfreenect2::Frame *rgb = frames[libfreenect2::Frame::Color];
        libfreenect2::Frame *ir = frames[libfreenect2::Frame::Ir];
        libfreenect2::Frame *depth = frames[libfreenect2::Frame::Depth];
        //! [loop start]

	//! [converting libfreenect2 to opencv mat]
        cv::Mat(rgb->height, rgb->width, CV_8UC4, rgb->data).copyTo(rgbmat);
        cv::Mat(ir->height, ir->width, CV_32FC1, ir->data).copyTo(irmat);
        cv::Mat(depth->height, depth->width, CV_32FC1, depth->data).copyTo(depthmat);
	cv::flip(depthmat,test,1);
	cv::flip(rgbmat,rgbmat_flip,1);
	//! [converting libfreenect2 to opencv mat]

        //! [registration]
        registration->apply(rgb, depth, &undistorted, &registered, true, &depth2rgb);
        //! [registration]

	//! [converting libfreenect2 to opencv mat]
        cv::Mat(registered.height, registered.width, CV_8UC4, registered.data).copyTo(rgbd);
	cv::flip(rgbd,rgbd_flip, 1);
	//! [converting libfreenect2 to opencv mat]

	//! [finding yellow objects]
        HSVOnly(iLowH, iHighH, iLowS, iHighS, iLowV, iHighV);
        Location();
	//! [finding yellow objects]

	int posY_comp = posY - 150;

	if(something <= 10)
	{
	posY_test = posY;
	}






while(something < 1)
    {
	dd = test.at<float>(Point(posX,posY_test));
	printf("x: %i, y: %i, d: %f\n",posX, posY_test, dd);

	if(something == 0 && dd != 0 && dd < 10000)
	{
		posY_test = posY_test - 1;

	}
	if(something == 0 && dd == 0)
	{
		something = 1;
		posY_test = posY_test + 7;
	}
	if(something == 1 && dd == 0)
	{
		posY_test = posY_test - 1;
	}
	if(something == 1 && dd != 0 )
	{
		something = 2;
	}
	if(something == 2 && dd < 10000 && dd != 0)
	{
		posY_test = posY_test - 1;

	}
	if(something == 2 && dd == 0)
	{
		something = 3;
	}
	if(something == 3 && dd == 0)
	{
		something = 11;
		posY_test = posY_test + 4;
		dd = test.at<float>(Point(posX,posY_test));
		printf("x: %i, y: %i, d: %f\n",posX, posY_test, dd);
	}
	if(dd > 10000)
	{
		something = 11;
	}


    }

	//! [adding distance data to image]
	dd = test.at<float>(Point(posX,posY_test));
	float dd_comp = dd+160;
	float diff = dd_comp - hand_x;
	cv::Point org;
	cv::Point rgb_org;
        org.x = posX-100;
        org.y = posY_comp-50;
	rgb_org.x = 3.5*posX;
	rgb_org.y = posY_test;
        char str[200];

        sprintf(str, "%.1fmm",diff);
        cv::putText( rgbd_flip, str, org, 0, 1, Scalar(255,255,0), 2, 8);
        cv::putText( rgbmat_flip, str, rgb_org, 0, 1, Scalar(255,255,0), 2, 8);
	//! [adding distance data to image]


	sensor_msgs::ImagePtr msg = cv_bridge::CvImage(std_msgs::Header(), "bgra8", rgbd_flip).toImageMsg();
	sensor_msgs::ImagePtr rgb_msg = cv_bridge::CvImage(std_msgs::Header(), "bgra8", rgbmat_flip).toImageMsg();
        pub.publish(msg);
        rgb_pub.publish(rgb_msg);

	 if (posX >= 0 && posY >= 0)
        {
	    cenX = 2*posX;
	    cenY = 2*posY_test;
	    //cenY = 2*posY_comp;
            //Draw a red circle encompassing object
            circle(rgbd_flip, Point(cenX, cenY), 25, Scalar(0, 0, 255), 1, 8, 1);
            circle(rgbd_flip, Point(cenX, cenY), 26, Scalar(0, 0, 255), 1, 8, 1);
            circle(rgbd_flip, Point(cenX, cenY), 27, Scalar(0, 0, 255), 1, 8, 1);
            circle(rgbd_flip, Point(cenX, cenY), 24, Scalar(0, 0, 255), 1, 8, 1);
            circle(rgbd_flip, Point(cenX, cenY), 23, Scalar(0, 0, 255), 1, 8, 1);

        }

	cv::imshow("rgb", rgbmat_flip);

        cv::imshow("registered", rgbd_flip);
	cv::imshow("threshold" , imgThresholded);

	something = 0;


        int key = cv::waitKey(1);
        protonect_shutdown = protonect_shutdown || (key > 0 && ((key & 0xFF) == 27)); // shutdown on escape

    //! [loop end]
        listener.release(frames);
    }
    //! [loop end]

    //! [stop]
    dev->stop();
    dev->close();
    //! [stop]

    delete registration;

    std::cout << "Streaming Ends!" << std::endl;
    return 0;
}


void HSVOnly(int iLowH, int iHighH, int iLowS, int iHighS, int iLowV, int iHighV)
{
    cv::Mat imgHSV;

    //Convert the captured frame from BGR to HSV
    cvtColor(rgbd_flip, imgHSV, COLOR_BGR2HSV);

    //Threshold the image
    inRange(imgHSV, Scalar(iLowH, iLowS, iLowV), Scalar(iHighH, iHighS, iHighV), imgThresholded);

    //morphological opening (remove small objects from the foreground)
    erode(imgThresholded, imgThresholded, getStructuringElement(MORPH_ELLIPSE, Size(5, 5)) );
    dilate( imgThresholded, imgThresholded, getStructuringElement(MORPH_ELLIPSE, Size(5, 5)) );

}


void Location()
{
    imgCircles = Mat::zeros( rgbd_flip.size(), CV_8UC4 );
    Moments oMoments = moments(imgThresholded);

    double dM01 = oMoments.m01;
    double dM10 = oMoments.m10;
    double dArea = oMoments.m00;

    if (dArea > 10000)
    {
        //calculate the position of the ball
        posX = dM10 / dArea;
        posY = dM01 / dArea;

    }


}

This code will take the data from the kinect and find the distance between the sensor and a yellow object. Then taking the FK data from Hubo's right hand will display the distance between the yellow object and Hubo's right hand above the detected object. How to run the code will be explained later on.
Then make a CMakeLists.txt file in the package and add the following code into it:

cmake_minimum_required(VERSION 2.8.3)
project(kinect2hubo)

set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -DBT_USE_DOUBLE_PRECISION -Wall")
# Unused warnings
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wuninitialized -Winit-self -Wunused-function -Wunused-label -Wunused-variable -Wunused-but-set-variable -Wunused-but-set-parameter")
# Additional warnings
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Warray-bounds -Wtype-limits -Wreturn-type -Wsequence-point -Wparentheses -Wmissing-braces -Wchar-subscripts -Wswitch -Wwrite-strings -Wenum-compare -Wempty-body -Wlogical-op")

# Check for c++11 support
INCLUDE(CheckCXXCompilerFlag)
CHECK_CXX_COMPILER_FLAG("-std=c++11" COMPILER_SUPPORTS_CXX11)
CHECK_CXX_COMPILER_FLAG("-std=c++0x" COMPILER_SUPPORTS_CXX0X)
IF(COMPILER_SUPPORTS_CXX11)
SET(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11")
ELSEIF(COMPILER_SUPPORTS_CXX0X)
SET(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++0x")
ELSE()
  MESSAGE(ERROR "The compiler ${CMAKE_CXX_COMPILER} has no C++11 support. Please use a different C++ compiler.")
ENDIF()

find_package(catkin REQUIRED COMPONENTS
  cv_bridge
  geometry_msgs
  message_runtime
  roscpp
  sensor_msgs
  std_msgs
  image_transport
)
find_package(freenect2 REQUIRED HINTS "$ENV{HOME}/freenect2") #for interfacing with kinect v2
find_package(OpenCV REQUIRED)

include_directories(
  ${catkin_INCLUDE_DIRS}
  ${OpenCV_INCLUDE_DIRS}
  ${freenect2_INCLUDE_DIRS}
)

add_executable(${PROJECT_NAME}_node src/main.cpp)

 target_link_libraries(${PROJECT_NAME}_node
   ${catkin_LIBRARIES}
   ${OpenCV_LIBRARIES}
   ${freenect2_LIBRARY}
 )

Then make a package.xml file and add the following code:

<?xml version="1.0"?>
<package format="2">
  <name>kinect2hubo</name>
  <version>0.0.0</version>
  <description>The kinect2hubo package</description>

  <maintainer email="[email protected]">Keitaro Nishimura</maintainer>

  <license>TODO</license>

  <buildtool_depend>catkin</buildtool_depend>
  <build_depend>cv_bridge</build_depend>
  <build_depend>geometry_msgs</build_depend>
  <build_depend>roscpp</build_depend>
  <build_depend>sensor_msgs</build_depend>
  <build_depend>std_msgs</build_depend>
  <build_depend>image_transport</build_depend>
  <build_export_depend>cv_bridge</build_export_depend>
  <build_export_depend>geometry_msgs</build_export_depend>
  <build_export_depend>roscpp</build_export_depend>
  <build_export_depend>sensor_msgs</build_export_depend>
  <build_export_depend>std_msgs</build_export_depend>
  <build_export_depend>image_transport</build_export_depend>
  <exec_depend>cv_bridge</exec_depend>
  <exec_depend>geometry_msgs</exec_depend>
  <exec_depend>message_runtime</exec_depend>
  <exec_depend>roscpp</exec_depend>
  <exec_depend>sensor_msgs</exec_depend>
  <exec_depend>std_msgs</exec_depend>
  <exec_depend>image_transport</exec_depend>

</package>

Then you should be ready to make the package using catkin_make.

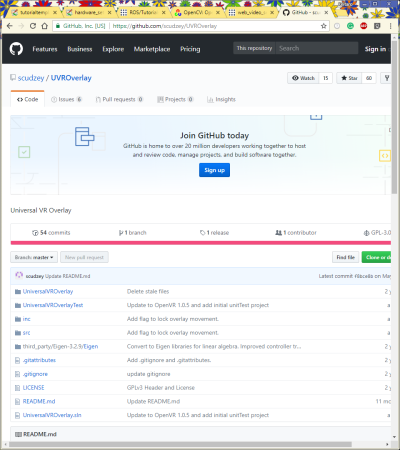

To insert the video feed into the HMD we will use the UniversalVROverlay package on the windows 10 computer running the HTC Vive. Please download the source code from github and build it to create the exe file.

The following steps depict how to stream the video feed from the OpenCV code into the the Vive HMD.

1. Connect all computers by router

2. Run the iai kinect code

3. Run the Opencv code

4. Run the web video server

5. View the stream in the Vive pc through the web explorer

6. Use the UniversalVRoverlay to input the stream into the HMD
